NEW RANGE FOR ENVIRONMENTAL MEASUREMENTS

Energy efficiency – Construction, environmental engineering, regulatory testing, maintenance and repairs - an environmental measuring instrument for each application.

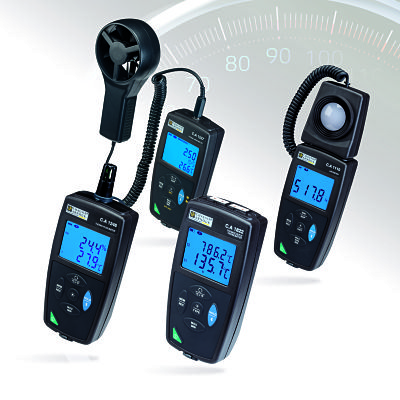

-C.A 1110 logger luxmeter

-C.A 1227 logger thermo-anemometer

-C.A 1246 logger thermo-hygrometer

-C.A 1821, C.A 1822 & C.A 1823 logger contact thermometers

NEW ! Chauvin Arnoux is launching a new range of environmental measurement instruments. Comprising 6 models, this comprehensive range covers all the applications in the field. Compact and ergonomic, they are designed to be simple to learn, with direct access to the functions.

This range also offers an exception battery life of up to 1,000 hrs in portable use and 3 years for recording.

• Intuitive ergonomics

Portable and equipped with a wide backlit display, all the measurements are accessible on the instrument's front panel simply by pressing: 1 key = 1 function !

• Applications

-Energy efficiency – Construction, in the context of European directive 2012/27/UE for correlati.on of the consumption data with ambient environmental criteria: temperature (C.A 1821, C.A 1822, CA 1823), lighting (C.A 1110) and flow rates (C.A 1227).

-Environmental engineering, in the context of HVAC commissioning and maintenance.

-Regulatory testing, for verification of compliance with the requirements concerning lighting (C.A 1110), temperature and humidity (C.A 1246), etc., in the workplace

-Industrial maintenance and repairs

• Recording

Recording can be started and stopped manually on the instrument: short press on MEM for spot recording or long press on REC for recording at the rate of the active mode. These instruments also allow you to perform programmed recording (start date, measurement interval from 1 minute to 2 hours and end date customizable with the Data Logger Transfer PC software.

• Map Mode

This function enables the C.A 1110 logger luxmeter to map the lighting in an area or room; the lighting measurements are then saved in the same file. The MAP mode can also map the air speeds measured (C.A 1227 logger thermo-anemometer).

• Smart, essential software

The Data Logger Transfer data analysis software automatically recognizes the instrument when it is connected to the PC via Bluetooth or USB. It allows users to download and display the stored data in real time.

-Display as graphs or value tables

-Data export in the form of graphs or Excel spreadsheets

-Real-time mode

-Automatic generation of reports in Word format

-Data format compatible with the DataView software

• Strengths

-Long battery life: up to 1,000 hrs in portable use and 3 years for recording

-Simple portable use: 1 key = 1 function

-Compact communicating instruments (USB and Bluetooth) with wide backlit display

-Excellent metrological performance

-Ingress protection: IP54 casing (C.A 1821, 1822, 1823 and 1246)

-Magnetized instruments equipped with Multifix-compatible hooks

-Shockproof sheaths available as accessories

Brand new available to order now- save up to 20% from the list price.

Available until July 2017

See full details HERE

Improve the energy efficiency of any facility

Everything you need in one box...

...to make your facility more energy efficient or expand your business to offer the service to others

up to 20% of a business’s energy costs are due to wasted energy

Most losses occur because of

- inefficient electrical equipment
- unscheduled /out of hours' energy use
- thermal (heat) leakage

Undertake surveys to determine energy saving opportunities

Perform short-term diagnostic monitoring for plant maintenance and expansion

For More Details- CLICK HERE

High-level series

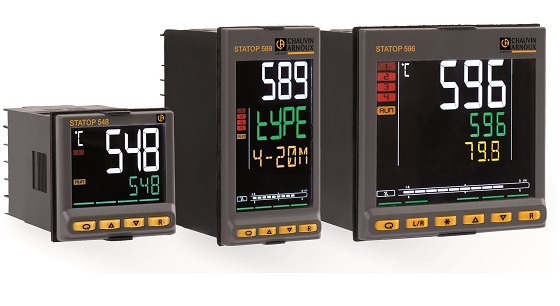

The STATOP 500 Series PID controllers form a family of products designed to control the temperature and other physical quantities (pressure, flow rate, etc.) in industrial processes and to manage the positioning of power-operated valves.
The 500 Series comprises 3 high-performance models: STATOP 548 - 589 - 596. The differences lie in their dimensions (1/16, 1/8 and 1/4 DIN), the extent of the information displayed and the number of logic inputs.

Advanced, customizable functions
The 500 Series offers a large number of functions, such as the setpoint programmer, logical blocks, the timer, the energy counter and alerts for preventive maintenance. Because the functions are configurable, they can be saved and reused for future applications.

Universal solution
With their universal input and Modbus RTU communication, the models in the 500 Series are easy to integrate in all command systems or PLCs.

Much more than just a controller...
With their logical blocks and metering functions, the models in the STATOP 500 Series can replace a small PLC or energy meter.

Control of energy costs
Equipped with an internal energy meter, the models in the STATOP 500 Series calculate and indicate your energy consumption on the process in question, in kW and/or €.

Integrated maintenance system
Particularly useful for programming preventive maintenance operations, the STATOP models perform counting of the commands and allow programming of alarm thresholds. The operator is informed of the maintenance to be performed on the actuators by a message on the display.

PYROtools software
The PYROtools software can be used to set up an extended configuration, create working recipes and upgrade the controller's firmware via a PC, without needing to power the controllers.

Contact us

Brand new and available to order now- Big savings from RRP

Available until December 31st

See full details HERE

Electrical Times Electrical Industry Awards 2017

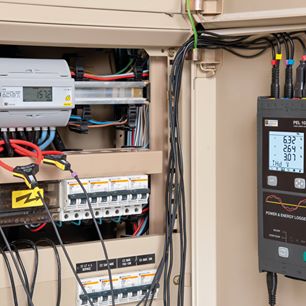

Chauvin Arnoux PEL103 was short-listed in 2 categories in the Electrical Times 2017 Electrical Industry Awards.

The categories were Commercial & Industrial product of the year.

Winners were announced at the Royal Garden Hotel, Kensington, London on 26th October. Although we were pipped to the post we were very proud to be named finalists!

Full list of nominees and winners here

"Chauvin Arnoux has purchased a majority holding in INDATECH. In this way, the Group is positioning itself as a new major player in spectroscopic measurement for Industry 4.0. Indatech is a French company founded in 2009 which develops innovative measuring instruments for complex products in the pharmaceutical, biotechnological and chemical sectors. Its optical measurement solutions are based on near-infrared spatially resolved spectroscopy (SRS) and Raman spectroscopy. The goal is to perform several data acquisition and extraction operations in order to characterize complex products such as powders, granules, emulsions, turbid liquids, etc., precisely, non-destructively and in-line. With this recent acquisition, the Chauvin Arnoux Group is continuing its policy of diversification and is seeking to boost sales of this innovative technology in France and worldwide." .

The CA6255 Miro-ohmmeter is an easy-to-use, high-performance instrument & tests the quality of connections with precision (resolution of 0.1 µΩ) through the use of low resistance measurements.

This is a direct replacement to the now discontinued CA6250 and is available to order now.

See full product details here

High Performance Thermal Camera

The CA1954 DiaCAm2 is perfectly balanced, whether placed on a table or held in the hand.  The display on a wide 2.8-inch screen with automatic brightness adjustment ensures that it can be read comfortably. The field of view is 38° x 28° and the camera is focus-free. The lens is protected by a slide-down cover built into the instrument, so that it cannot be lost and does not get in the way when you work.
Contextual help guides users step-by-step, thus limiting the risk of errors.
Particularly rugged, with IP54  ingress protection, the camera can withstand falls from 2 metres (laboratory tests).

Concentrated measurement
The CA1954 is a communicating camera which simultaneously recovers the measurements from other instruments such as current clamps, multimeters, thermometers, thermo-hygrometers, etc., via Bluetooth.
In this way, users can link the thermograms from the camera to the data from measurements made simultaneously with other measuring instruments. This involves values such as:
- the dew point,
- the humidity,
- the ambient temperature,
- the current, etc.

The integrated emissivity table can be enhanced as required. It is possible to rename the images and thermograms by site and record voice comments for easier follow-up. The C.A 1954 has a memory capacity of nearly 4,000 images on the 2 GB removable µSD card supplied which can easily be replaced with a 32 GB card.

Concentrated applications

The CA1954 is ideal for all applications in the building industry and for electrical and mechanical maintenance:
- thermal audits,
- fault detection (thermal bridges, seepage, presence of humidity),
- electrical maintenance: detection of faulty contacts, unbalance, etc.
- mechanical maintenance: detection of wear points, engine overheating, lubrication problems, etc.

In industrial maintenance, linking thermograms and current measurements enables you to find out the load level at the time of measurement, facilitating identification of the fault and assessment of its criticality.
In buildings, the isotherm coupled with the dew point value can be used to detect areas at risk from mould.

It is possible to record and store the configurations for the different applications (building, electrical cabinet, etc.), thus saving extra time.

The CAmReport® software, supplied free of charge, can be used to create automatic reports which can be exported in Word or PDF format. This simplifies printing and archiving.

The CA1954 is delivered ready to use in a site-proof casing with all its accessories, including the Bluetooth earpiece. It complies with the environmental protection and part recycling specifications of the Chauvin Arnoux Group's "Eco-Conception" eco-design label.

View full product listing here: CA1954 DiaCam2
